GERMAN EYE SHAFT QUARTZ PENDULUM MOVEMENT
TIDE, REVERSE, HIGH TORQUE, PENDULUM, CHIME, 24 HOUR CLOCK MOVEMENTS

Prices shown are for less than 10 pcs, discounts are applied for 10 to 49 pcs at the shopping cart.

For quantities greater than 50 pcs please call for a quote.

!

GERMAN ANTI-CLOCKWISE MOVEMENT eye shaft.

EX VAT
!
Larger picture

10+ £2.95 EA

This unit runs in reverse.

Takes a single AA battery order separately under tools

For hands see hands for German eye shaft movements.

For identification this unit has a red hand adjust wheel.



GERMAN 24 HOUR MOVEMENT eye shaft

EX VAT
!
Larger picture

10+ £3.25 EA

The hour shaft of this unit runs at 1/2 normal speed, 1 revolution every 24 hrs.

Takes a single AA battery order separately under tools

For hands see hands for German eye shaft movements.

For identification this unit has a blue hand adjust wheel.

GERMAN PENDULUM MOVEMENT eye shaft

EX VAT
!
Larger picture

10+ £4.95 EA

An integral movement and pendulum in one unit.

Takes a single Alkaline AA battery order separately under tools

For hands see hands for German eye shaft movements.



TIME AND TIDE MOVEMENT supplied complete with 110mm sets of baton hands

EX VAT
!

10+ £9.95 EA

A 4 handed movement with Hour, Minute, Second and tide hand. The tide hand rotates at 12 hours and 25 minutes to the normal 12 hour rotation of the other 3 hands. This is half the lunar cycle of 24 hours 50 minutes which governs high and low tides.

Takes a single AA battery order separately under tools

Ideally suited for dials of 2 and 3mm thick.



TIDE ONLY MOVEMENT supplied with 70mm spade hand and red second hand

EX VAT
!

10+ £5.95 EA

50+ £3.95 EA

A single handed Tide movement. The hand rotates at 12 hours and 25 minutes to the normal 12 hour rotation of other clocks. This is half the lunar cycle of 24 hours 50 minutes which governs high and low tides.

Takes a single Alkaline AA battery order separately under tools.

Takes hands from our economy hands range.

Note that the 24 hour 50 minutes is an average figure based on a 29 1/2 day cycle. Actual high and low tides may vary due to local wind conditions causing tides to be slightly earlier or later than indicated.



RADIO CONTROLLED MOVEMENT supplied with 80mm plastic sets of hands (note this unit is roundshaft)

EX VAT
!
Larger picture

10+ £7.95 EA

A state of the art movement which recieves a radio signal from the NPL atomic clock to maintain it's accuracy.

Takes a single Alkaline AA battery order separately under tools.



QUARTZ PENDULUM MVT WITH MECHANICAL BIM BAM STRIKE

EX VAT
!

The only quartz pedulum mechanical Bim-Bam on the market today. It has the full rich sound of a traditional mechanical Bim-Bam movement with the convience and accuracy of a modern quartz movement. Japanese Made

This Bim-Bam movement strikes two different copper rods on the half and the hour, with an hour count on the hour, can also be operated without a pendulum. This movement will not operate a second hand and may not drive big heavy antique pendulums.

Dimensions: 150mm W x 160mm H x 52mm D    shaft is 20mm long suitable for dials up to 10mm thick.

Superior mechanical sound, Can Operate with or without pendulum, Takes 1 "D" cell Battery.

Choose hands from hands for German Eye Shaft Movements and pendulum from pendulum rods and bobs section.

4 X 4 WESTMINSTER CHIME PENDULUM MOVEMENT

EX VAT
!
Larger picture

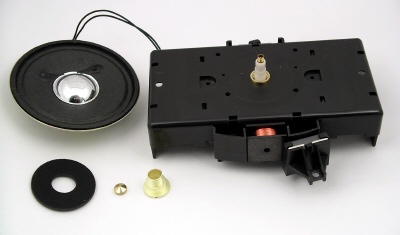

Top quality full westminster strike electronic chime pendulum movement with seperate loudspeaker. This unit has a superb sound and sounds just like a mechanical strike unit when fitted into a wood case. Can be used as non pendulum if required. Takes 2 x C cells.

Size 110mm wide x 100 high x 28 deep

For hands see hands for German eye shaft movements.

GERMAN HIGH TORQUE MOVEMENT eye shaft

EX VAT
!
Larger picture

10+ £2.95 EA

This movement has a more powerful coil and will drive BALANCED minute hands up to about 240mm long.

Takes a single Alkaline AA battery order separately under tools

For hands see hands for German eye shaft movements.

For identification this unit has a green hand adjust wheel.

C CELL HIGH TORQUE MOVEMENT KIT spade hands

EX VAT
!

Super High Torque Movement kit complete with 18 inch counter balanced V set aluminium hands. Supplied with fixings and metal hanger.

Takes a C cell battery
