GERMAN EYE SHAFT QUARTZ PENDULUM MOVEMENT
SPECIALITY CLOCK MOVEMENTS, TIDE, SWEEP, REVERSE, HIGH TORQUE, PENDULUM, CHIME, 24 HOUR, BIM BAM, RADIO CONTROLLED

Prices shown are for less than 10 pcs, discounts are applied for larger quantities. If you require larger quantities than shown please contact us for a quote.

!

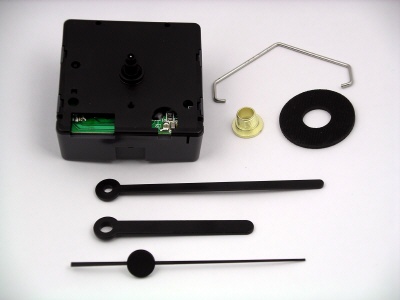

12 / 24 HR CLOCK MOVEMENT supplied complete with 110mm sets of hands

!
Larger picture

10+ £9.95 EA

A 4 handed movement with hour, minute second and a 24 hour hand which rotates at 1/2 the speed of the normal 12 hour hand. Can lead to some interesting dial designs.

MAX DIAL THICKNESS 3MM

Takes a single AA battery order separately under tools.



TIME AND TIDE CLOCK MOVEMENT supplied complete with 110mm sets of baton hands

!

10+ £9.95 EA

A 4 handed movement with Hour, Minute, Second and tide hand. The tide hand rotates at 12 hours and 25 minutes to the normal 12 hour rotation of the other 3 hands. This is half the lunar cycle of 24 hours 50 minutes which governs high and low tides.

MAX DIAL THICKNESS 3MM

Takes a single AA battery order separately under tools

TIDE ONLY CLOCK MOVEMENT supplied with 70mm spade hand and red second hand

!

10+ £6.95 EA

50+ £4.95 EA

A single handed Tide movement. The hand rotates at 12 hours and 25 minutes to the normal 12 hour rotation of other clocks. This is half the lunar cycle of 24 hours 50 minutes which governs high and low tides.

Takes a single Alkaline AA battery order separately under tools.

Takes hands from our economy hands range.

Note that the 24 hour 50 minutes is an average figure based on a 29 1/2 day cycle. Actual high and low tides may vary due to local wind conditions causing tides to be slightly earlier or later than indicated.

For dials up to 6mm thick.

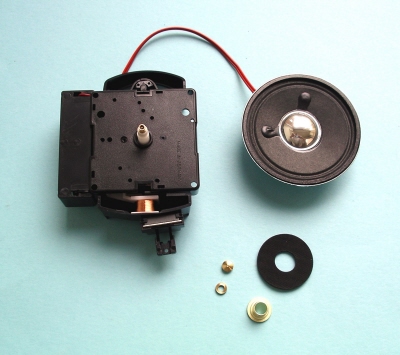

4 x 4 CHIME GERMAN PENDULUM CLOCK MOVEMENT eye shaft

!

An integral 4 X 4 Westminster Chime pendulum movement with seperate loudspeaker

Takes two Alkaline AA battery order separately under tools

For hands see hands for German eye shaft movements up to around 150mm (min).

We recomend you use one of our pendulum rods and bobs as these modern units may not swing old heavy pendulum rods and bobs.

Size approx 70mm wide x 105mm high x 28mm deep.

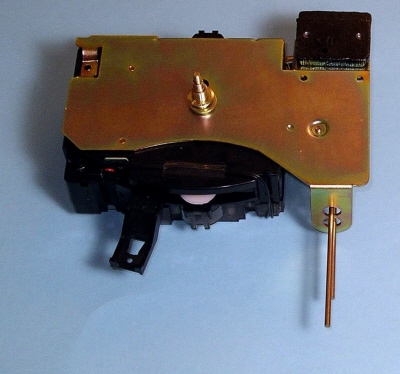

QUARTZ PENDULUM CLOCK MOVEMENT WITH MECHANICAL BIM BAM STRIKE

!

The only quartz pedulum mechanical Bim-Bam on the market today. It has the full rich sound of a traditional mechanical Bim-Bam movement with the convience and accuracy of a modern quartz movement. Japanese Made

This Bim-Bam movement strikes two different copper rods on the half and the hour, with an hour count on the hour, can also be operated without a pendulum. This movement will not operate a second hand and may not drive big heavy antique pendulums.

Dimensions: 150mm W x 160mm H x 52mm D    shaft is 20mm long suitable for dials up to 10mm thick.

Superior mechanical sound, Can Operate with or without pendulum, Takes 1 "D" cell Battery.

Choose hands from hands for German Eye Shaft Movements and pendulum from pendulum rods and bobs section.

GERMAN HIGH TORQUE CLOCK MOVEMENT eye shaft

!
Larger picture

10+ £3.25 EA

50+ £2.45 EA

100+ £1.85 EA

This movement has a more powerful coil and will drive LIGHT BALANCED minute hands up to about 240mm long.

Case size approx 57 x 57 x17mm deep.

Takes a single Alkaline AA battery order separately under tools

For hands see hands for German eye shaft movements.

For identification this unit has a green hand adjust wheel.

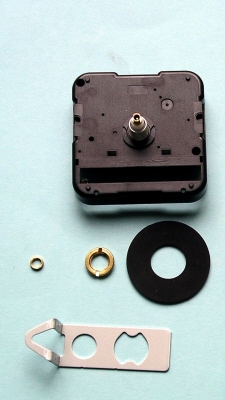

SEIKO HIGH TORQUE SWEEP CLOCK MOVEMENT eye shaft.

!

10+ £7.95 EA

50+ £5.95 EA

A powerful very smooth running High Torque Sweep movement with eye shaft minute fitting. This is the most powerful AA battery Sweep Quartz movement available.

Made By Seiko.

Case size approx 57 x 57 x17mm deep.

Takes a single Alkaline AA battery order separately under tools

For hands see hands for German eye shaft movements.

NOTE WE BUSH THEM TO SUIT SO ANY EURO SHAFT HANDS YOU ALREADY HAVE WILL NOT LIKELY FIT





GERMAN PENDULUM CLOCK MOVEMENT eye shaft

!
Larger picture

10+ £4.95 EA

50+ £4.25 EA

100+ £3.95 EA

An integral movement and pendulum in one unit.

Takes a single Alkaline AA battery order separately under tools

For hands see hands for German eye shaft movements up to around 150mm (min).

We recomend you use one of our pendulum rods and bobs as these modern units may not swing old heavy pendulum rods and bobs.



RADIO CONTROLLED CLOCK MOVEMENT supplied with 80mm plastic sets of hands (note this unit is roundshaft)

!
Larger picture

A state of the art movement which recieves a radio signal from the NPL atomic clock to maintain it's accuracy.

Takes a single Alkaline AA battery order separately under tools.

Not suitable for open handed clocks.

C CELL HIGH TORQUE SWEEP CLOCK MOVEMENT KIT spade hands

!

Super High Torque Movement kit complete with approx 17 3/4 inch (minute centre to tip) counter balanced V set aluminium hands. Supplied with fixings and metal hanger. These movements have a sweep motor not a normal stepper motor. The minute hand does not vibrate at the tip as with normal quartz stepper units. They are the most powerful quartz units on the market, does not run a second hand.

NOT FOR USE OUTSIDE

Takes an Alkaline C cell battery
